Ever since I started to work on OMR compiler codegen for RISC-V, I struggled to setup Eclipse CDT so I canuse use it for OMR development. I tried a lot of things, but there was always something missing. The most annoying part was that code indexer did not work very well and that made code assist (code completion) useless.

This is a major release to support Eclipse 2020-12, CDT 10.x, and CMake4Eclipse Parser update along with a good set of improvements and bug fixes to improve the plugin functionality. It's highly recommended to use the Eclipse 2020-12 CDT Package with this release. Windows 10 Version 1809 Eclipse IDE for C/C Developers (Version: 2019-06 (4.12.0)) cmake4eclipse 2.1.1 cmake version 3.17.0 GNU Make 4.2.1 repository for a simple example project: https://bitbuc.

  1. I am aware of the cmake4eclipse plugin, but I still have not managed to set it up properly. I was hoping for some native support for compilecommands.json file. I mean it should not be that difficult, it is just parsing the json file to a known Eclipse format.
  2. CMake projects in Visual Studio.; 15 minutes to read; c; r; j; e; In this article. CMake is a cross-platform, open-source tool for defining build processes that run on multiple platforms.
  3. Now let’s install the cmake4eclipse plugin from the marketplace. In the Nsight main menu, Select “Help Eclipse Marketplace” in the Nsight main menu and type “cmake” in the search window. Now install the cmake4eclipse plugin by clicking on “Install”, shown in Figure.

Quite recently, I did another pass over the setup and found a way that works okay (so far):

  • Supports multiple configurations including cross-compilation for different targets (tried only x86-64 and RISC-V),
  • building OMR from IDE works and does not interfere with manual building,
  • code assist works just fine (in most cases anyway),
  • code formatter works and follows OMR compiler coding style (in most cases anyway).

This post contains a step-by-step recipe how to setup Eclipse CDT.

Following recipe has been tested on Eclipse CDT 2020-06 withCmake4eclipse plugin. The easiest way to install the plugin is to from eclipse marketplace right from the IDE.

If you already have some Eclipse project setup files for OMR in your Eclipse workspace (.project, .cproject and .settings), make sure you remove them before trying the following. Otherwise, it may not work because Eclipse will pick parts from old config and you get into all sorts of weird situations. Been there, seen that.

  1. Configure CDT indexer to always use active configuration: open workspace preferences (Window ▷ Preferences), select page C/C++ ▷ Indexer and check Use active build configuration.

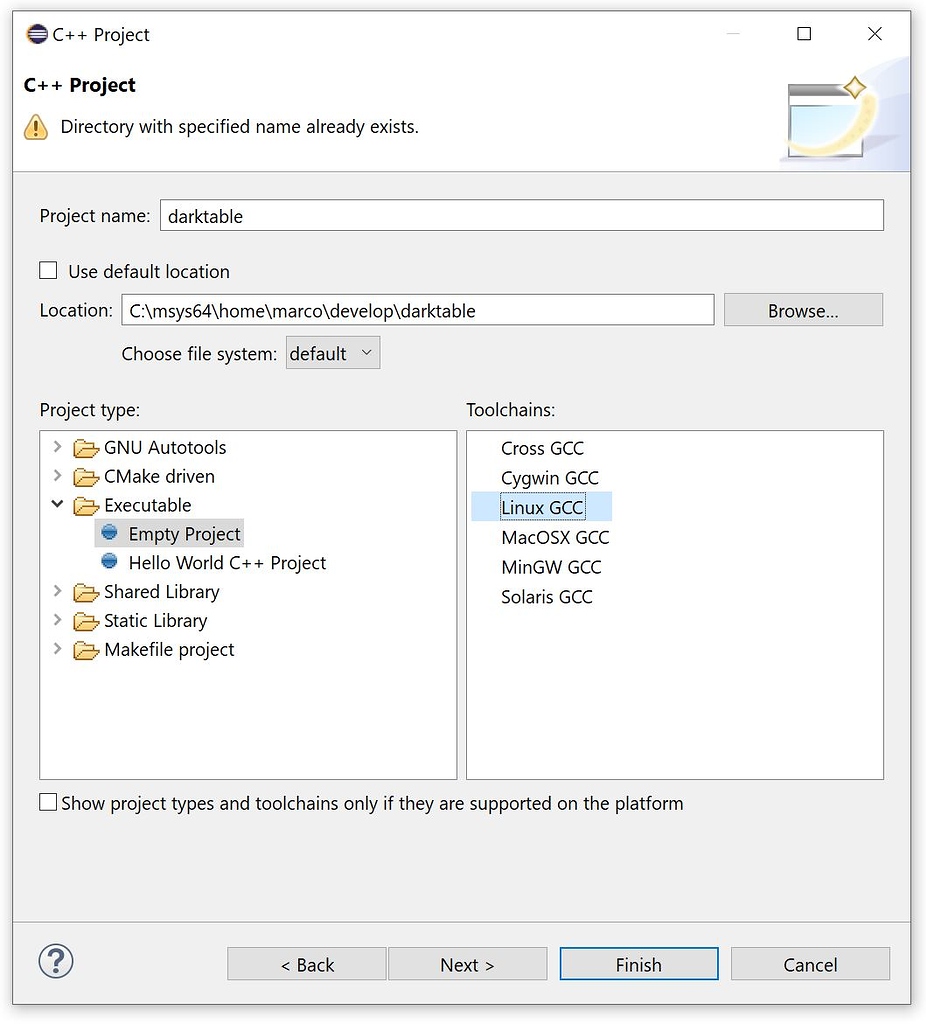

  2. Create new generic project: File ▷ New ▷ Project:

    • In the dialog, select C/C++ ▷ C++ Project.

    • Press Next, fill in a project name and location, select CMake driven ▷ Empty Project as project type and CMake driven as toolchain.

    • Press Finish

    WARNING: don’t create project using File ▷ New ▷ C/C++ Project — it is tempting, but that lead anywhere.

  3. Once a project is created, open project properties (Project ▷ Properties):

    • Select C/C++ Build property page and press Manage Configurations…, in the dialog delete all but one configuration (we will optionally add more later). Rename it to x86_64-linux (obviously, you can choose whatever name you like, I just find this naming usefull since we will then have configurations for cross compiling for different architectures).

    • Select C/C++ Build property page and:

      • In tab Behavior, limit number of parallel jobs to some sensible number. Do not leave it to Use unlimited jobs, it makes the system unusable.

    • Select C/C++ Build ▷ Cmake4eclipse property page and:

      • Check Force cmake to run with each build
      • Enter ../../cmake/caches/Travis.cmake in Pre-populate CMake cache entries from file. Note, that this path is relative to build directory, hence ../...

    • Select C/C++ Build ▷ Cmake4eclipse ▷ Host OS overrides property page and:

      • (Optional) Set CMAKE_BUILD_TYPE to Debug

    Now you should be able to build OMR from Eclipse using menu Project ▷ Build Project. Also, code should be properly indexed, taking all the defines and include paths from CMake.

  4. (Optional) If you’re working on a compiler (like me), you may want to add a new configuration to cross-build OMR for your favourite architectures. If you set this configuration as active, CDT indexer will pick includes and definitions and even code completions (code assist) works as expected.

    Following is setup for RISC-V - you may want to adapt it for other architecture. Open project properties:

    • Select C/C++ Build property page and press Manage Configurations…and create new one, copying all settings from the x86_64-linux and(optionally) set it active.
    • Select C/C++ Build ▷ Cmake4eclipse ▷ Host OS overrides property page and add:
      • Set OMR_TOOLS_IMPORTFILE to ${workspace_loc}/omr/build/x86_64-linux/tools/ImportTools.cmake
      • Set CMAKE_TOOLCHAIN_FILE to ${workspace_loc}/omr/cmake/toolchains/riscv64-linux-cross.cmake
      • Set CMAKE_FIND_ROOT_PATH to /opt/riscv/sysroot (you may need to adapt the value to match your system)
  5. (Optional) If you’re using dark theme (like me), you may want to change the background for “occurences” to something darker than the default. Default is very light, making the text unreadable. To change it, open workspace preferences (Window ▷ Preferences), select page General ▷ Editors ▷ Text Editors ▷ Annotations and then change background of C/C++ Occurences and of C/C++ Write Occurences according to your taste.

  6. (Optional) If you’re working on OMR compiler (like me), you may want to change formatter preferences to match OMR compiler formatting style. Open project preferences (Project ▷ Properties), select page C/C++ Build ▷ Formatter and:

    • Tick Enable project specific settings
    • Import OMR compiler settings from omr_compiler_formatter_settings.xml

Eclipse is a widely used and very flexible IDE to make coding more efficient. Of course, it can be used for developing Navit:

  • 2Project Setup
  • 3Android Development
  • 4Valgrind
  • 6Old instructions

Install[edit]

We will combine the usual CMake environment, which is used to configure the Navit build process and

  • Check navit's dependencies and install necessary native tools and libraries
  • Install newest Eclipse with your package manager or manually
  • Start Eclipse and install the following extensions (Help -> Install software):
    • CDT
    • autotools
    • cmake4eclipse
    • Valgrind (from Linux Tools, http://wiki.eclipse.org/Linux_Tools_Project/PluginInstallHelp; software site: http://download.eclipse.org/linuxtools/update) is highly recommended. This will install Valgrind extensions for Eclipse; you will also need to install Valgrind using your distribution’s package manager.
    • If you're developing for Android, you will also need Andmore (https://projects.eclipse.org/projects/tools.andmore) or ADT Plugin (http://developer.android.com/sdk/eclipse-adt.html#downloading).

Android developers: ADT used to be the standard tool for Android development on Eclipse. Since Google has moved to Android Studio, ADT is no loner maintained. Andmore is an Eclipse project based on ADT code. It is a near drop-in replacement for ADT (though ADT projects need to be converted once to work with Andmore, see the FAQ at https://github.com/eclipse/andmore/wiki/FAQ.)

Project Setup[edit]

Setting up Eclipse requires cmake4eclipse, which is available from Eclipse Marketplace. (Previous versions relied on CMake to generate a project that could then be imported in Eclipse, but this is now deprecated for reasons listed below.) Build artifacts get placed in a separate folder in the source tree, which helps us keep the source tree clean in a similar way as cmake does, making version control a whole lot easier.

We assume that the source code for all your projects resides in ~/src and that you use ~/workspaces as the base directory for your Eclipse workspaces. Navit source code then goes in ~/src/navit and the project dir inside your workspace will be called navit-linux. This is not a must – you can use different path names, but remember to adapt the paths below.

To avoid committing any build artifacts or Eclipse housekeeping information, ensure your .gitignore file contains the following entries:

If you have #33f553c in your branch history (i.e. if you forked from trunk or merged trunk after May 23, 2018), this is already in place and you don’t have to do this yourself any more.

  • Clone the git repo if you haven't already:
    • If you don't have commit rights:
      • cd ~/src
      • git clone https://github.com/navit-gps/navit.git
    • If you have commit rights to the Navit repo:
    • If you have your own fork of Navit, clone your own repo instead.
  • Start Eclipse with a new workspace, ~/workspaces/navit.
  • Then, import the project to Eclipse
    • In your Eclipse workspace, do File > New > C Project
    • Enter navit-linux as the project name. Uncheck Use default location, and instead browse to ~/src/navit. Select Executable > Empty Project as the project type, and accept Linux GCC as the toolchain.
  • Right-click the new project in your workspace and edit its properties:
    • Under C/C++ Build, on the Builder Settings tab, ensure Generate Makefiles automatically is checked
    • Under C/C++ Build > Tool Chain Editor, set CMake Builder (portable) as the current builder
  • The default working directory to run the program is the project root directory, but navit is located in 'navit' subdirectory and it needs the working directory to be the same to run properly.
    • Go to Run > Run configurations... > Arguments
    • Select as working directory ~/src/navit/build/Debug/navit
  • If you get the error Gtk-WARNING **: cannot open display: when running
    • Go to Run > Run configurations... > Environment
    • Add the environment variable DISPLAY with value :0

That's it! You can now build, run and debug Navit right from Eclipse.

Run Configurations[edit]

If you want to try out different command line options (e.g. run Navit with a different config file), you can do so by going to Run > Run Configurations... and creating a new run configuration.

Migrating from a CMake-Generated Project Setup[edit]

If you followed our old instructions and used CMake to generate a project configuration to import in Eclipse, it is strongly recommended that you upgrade:

  • CMake’s CDT makefile generator appears to be unmaintained and has caused some problems in the past (specifically, upgrading from Luna to Oxygen seems to break a couple of things, breaking code indexing and flagging errors where there aren’t any)
  • The previous Notes and Limitations section no longer applies:
    • With cmake4eclipse, source files no longer appear in two different places in the tree, leaving you to wonder which is the correct one to edit
    • Changes to the CMake setup take effect instantly (presumably—not yet tested in practice)
    • Team features (git access from Eclipse) now work in the intended manner

If you set up your Eclipse project with a CMake-generated configuration and want to switch to cmake4eclipse, follow the steps below. Don’t panic—your run/debug configurations remain in place, you just need to adapt paths in two places (and we’ll explain how).

Cmake4eclipse Help

  • Delete the navit-linux project from your workspace
  • In your navit workspace dir, rename the navit-linux subdir to navit-linux-cmake (any other name is fine too, or move it somewhere completely different)
  • Import the project as described above (reusing your existing workspace instead of creating new one)
  • Update your build configurations:
    • Set ~/src/navit/build/Debug/navit/navit as the C/C++ executable
    • Select as working directory ~/src/navit/build/Debug/navit
  • Build Navit once
  • If you have anything from your former navit-linux dir to salvage (e.g. navit.xml, center.txt, destination.txt), copy it from navit-linux-cmake to ~/src/navit/build/Debug.

Android Development[edit]

Android development is a bit more challenging than Linux development because we'll be dealing with two independent (but nested) source trees – the C code and the Android-specific Java code. You can see and edit the Java files with the above setup, but you'll get a lot of annoying error messages, and most of Eclipse's code analysis features won't work for the Java code.

This can be solved by importing the Java code as a separate project (which can go in the same workspace). Unfortunately we can't just import the whole thing as an Android project because Eclipse expects an AndroidManifest.xml file – which we can't provide because Navit's toolchain generates that file during build. But there's a workaround.

In order to complete all the steps, you need to build Navit once from the command line as described in Android development#With cmake. (For convenience, you can create the respective build directory in your workspace dir.) If you don't, you won't be able to complete all of the steps. You can skip them for the moment and do them once you have built Navit. Eclipse will still be able to make sense of the code, but you will have files in your workspace (such as AndroidManifest.xml) which have nothing to do with Navit.

Here's how to do it:

  • Make sure you have a workspace set up for Navit as described above.
  • In your workspace, do File > New > Android Application Project.
  • In the dialog that opens, make the following settings:
    • Application Name: Navit
    • Project Name: navit-android (again, you can choose a different name if you wish)
    • Package Name: org.navitproject.navit
    • Minimum Required SDK: 7
    • Target SDK: 19 (as of this writing)
    • Compile With: accept the default value
    • Theme: Holo Dark
  • Click Next and on the next page, make the following settings:
    • Create custom launcher icon: uncheck
    • Create activity: uncheck
    • Mark this project as a library: uncheck
    • Create Project in Workspace: check
  • Click Finish and you will get a new, still empty project.
  • Delete the src folder of your new project.
  • Do File > New > Folder. In the dialog that opens, click Advanced to reveal all options, then make the following settings:
    • Parent folder: navit-android (or whatever you chose as the project name above)
    • Folder name: src
    • Advanced options: Select Link to alternate location (Linked folder) and set the path to ~/src/navit/navit/android/src (we recommend browsing for the folder rather than entering the name directly).
  • Repeat the same two steps for the libs and res, deleting the default folders and replacing each with a link to its counterpart in the source dir.
  • Right-click the src folder and select Build path > Use as source folder from the menu
  • Right-click the navit-android folder (or your project's root folder) and do New > File. In the dialog that opens, click Advanced to reveal all options, then make the following settings:
    • Parent folder: navit-android (or whatever you chose as the project name above)
    • File name: leave blank (will be filled in automatically)
    • Advanced options: Select Link to file in the file system and set the path to ~/src/navit/navit/android/AndroidManifest.xml.cmake (we recommend browsing for the folder rather than entering the name directly).
  • Repeat the same steps to replace the default AndroidManifest.xml with a link to navit/android/AndroidManifest.xml, which resides in your cmake build dir for Android. (This requires having built Navit once.)
  • Right-click AndroidManifest.xml, choose Properties and check the Derived option. (This will tell Eclipse to give you a warning when you try to edit the file.)
  • (Optional) Right-click AndroidManifest.xml.cmake and select Open With > Text Editor to tell Eclipse to open its own editor for the file instead of launching an external one.
  • Restart Eclipse. (This step may not be necessary but during our tests Eclipse had trouble matching declarations to packages, resulting in features like Jump to Declaration and Call Hierarchy not working across source files. Restarting Eclipse fixed this.)

And you have the Android code in a separate project, with the usual syntax features available here.

Cmake4eclipse

Notes and Limitations[edit]

  • Open Java files from your Android project, not from the Linux one. (Those will work too and point to the exact same files, but syntax features will only work from the Android project.)
  • Team features (git integration) still won't work, so you'll have to stick with your external git UI.
  • Building from Eclipse probably won't work yet with this setup. You will still need to build your .apk from the command line as described in Android development#With cmake.

Potential Further Improvements[edit]

If anyone wants to have a go: Figure out how to build an .apk from Eclipse. Prerequisites will likely include:

Cmake4eclipse
  • Creating a cmake build dir for Android and running cmake from the command line once
  • Possibly linking further dirs from the Android build dir into the project (e.g. gen, bin)
  • Triggering a build of the native code with cmake (adding custom builders to the project)
  • Ensuring the APK builder picks up the native libraries we built (possibly accomplished by linking to the respective dirs)

Valgrind[edit]

Valgrind is a powerful debugging and profiling tool. It is available as a command-line tool, but the Eclipse plugin makes it a lot more convenient to handle (among others, no commands to remember and the ability to jump directly to the line of code that got flagged). By examining a program’s actions as they are executed, it can detect errors that are otherwise hard to track down. Its Memcheck component can notably detect:

  • Use of uninitialized memory
  • Reading/writing memory after it has been freed
  • Reading/writing beyond the end of an allocated memory block
  • Memory leaks (such as allocating memory which never gets freed)

All of these can be spotted fairly quickly with Valgrind, possibly saving you several hours of debugging (as the author of these lines will happily confirm). If you’re getting any kind of spurious behavior, it’s a good idea to run things through Valgrind and see if it’s caused by any of the errors listed above.

Getting Started[edit]

To start Navit and profile it with Valgrind, use the Profile command. It is located next to its Debug and Run siblings in the toolbar:

Usage is straightforward and mostly similar to Run and Debug. However, Memcheck will not present a result until the program has terminated (either regularly or by being killed).

The Run and Debug configurations are shared with the Profile configurations. Profile configurations have an additional tab, shown below:

The most important setting is the profiling tool to run, right at the top of the tab. Memcheck is selected here. You can leave the other options as they are (unless you know what you are doing—but then you probably won’t need those instructions).

Working with Valgrind[edit]

Valgrind will only spot errors if the faulty code actually gets executed. Therefore, before you request a merge of your new code, run a few test cases while profiling them with Valgrind. If you are trying to hunt down a particular error, try to reproduce it with Navit running in Valgrind.

Be aware that behavior (including if and how certain bugs manifest themselves) can be slightly different with Valgrind: Timing is different, as the code will appear to run on a processor that is some 20 times slower than your actual CPU, therefore race conditions may play out differently. Memory is arranged differently, as Memcheck “pads” each allocated block with some buffer bytes on each end to detect out-of-boundary accesses, thus some invalid memory operations will behave differently.

If you are experiencing a bug that seems to disappear as soon as Valgrind is involved:

  • Reproduce the error without Valgrind, and record the exact steps to reproduce it.
  • Profile Navit with Valgrind and execute the same steps again. Even if you do not get the erroneous behavior you noticed before, the faulty code probably got executed and Valgrind picked up any invisible errors it found.
  • Examine Valgrind’s output, and fix whatever error got flagged.
  • Run the test again while profiling with Valgrind, and verify that you have eliminated the error report you got before.
  • Now test without Valgrind to verify the error has actually been fixed.

Debugging Endless Loops[edit]

If Navit stops responding but is maxing out one CPU core, but you can’t figure out where you ran into an endless loop, here’s how to find out:

Make sure you have started Navit using the Debug functionality in Eclipse. When Navit stops responding, run the following from a shell:

This will halt the Navit process, give you a stack of the current call trace and allow you to inspect variables—basically the same you can do when Navit terminates abnormally during debug. Except here you can just hit Continue and repeat the exercise as often as you like. Examine the call stack (if needed, also comparing different debug sessions) and you will get an idea of where it is hanging.

Old instructions[edit]

The previous instructions were based on a different infrastructure (notably SVN) and took a slightly different approach. If you'd like to tinker, here they are:


Setup project[edit]

Cmake4eclipse Setup

  • Start a new project, pick import SVN
    • svn co svn://svn.code.sf.net/p/navit/code/trunk/navit
  • Select C/C++ project
  • Choose now GNU Autotools(if there is nothing under toolchains install autotools(autoconf,automake/gettext) via your os packagemanager)
  • Open a terminal, switch to your workspace navit folder and invoke 'cmake ./'
    • you now have makefile that matches your local setup
  • In Eclipse, pick 'build all' and you should get a binary
  • Run as application and you your local build should start

Doing Navit/Android development with Eclipse INCOMPLETE[edit]

This guide assumes you already have the source downloaded locally, and have already built a package for Android using CMake (see Linux development).

Cmake4eclipse

  • Download Eclipse
    • Eclipse Classic is fine
  • Install Eclipse
    • Unzip to directory of your choice
    • Start Eclipse by going into your eclipse folder, and running eclipse
    • Setup a new workspace when prompted
  • Setup JDT plug-in
    • Help -> Install new software
    • Work with: from the dropdown box, select Indigo - http://download.eclipse.org/releases/indigo
    • Wait!
    • Select Eclipse Java Development Tools
    • Next
    • Finish
    • Restart

Cmake4eclipse Build

  • Install ADT plugin
    • Use Google's instructions at http://developer.android.com/sdk/eclipse-adt.html#downloading
    • Then follow the instructions at http://developer.android.com/sdk/eclipse-adt.html#configuring
  • Import Navit
    • File -> New -> Project...
    • Android -> Android Project
    • Next
    • Project Name: -> NavitProject
    • Create project from existing source
    • Location: browse to the directory navit/android/within your cmake build directory.
    • Next
    • Build Target -> check Android 2.2
    • Next
    • Finish
    • Project -> Properties
    • Java Build Path from left hand window
    • Libraries tab
    • Add JARs
    • NavitProject -> libs -> TTS_library_stub.jar. OK
    • Java Compiler from left hand window
    • Apply on message window
    • Compiler compliance level: -> 1.6
    • OK
    • Yes

Cmake Eclipse Not Working

And then the project should be clean of errors besides the only one stating that android_layout_default.xml is not well-formed. That's sad true. That file is indeed not an xml document but a fragment of one. Do we have some setting to switch this check off? Should we rename that file?

Cmake4eclipse

Retrieved from 'https://wiki.navit-project.org/index.php?title=Eclipse&oldid=21165'
